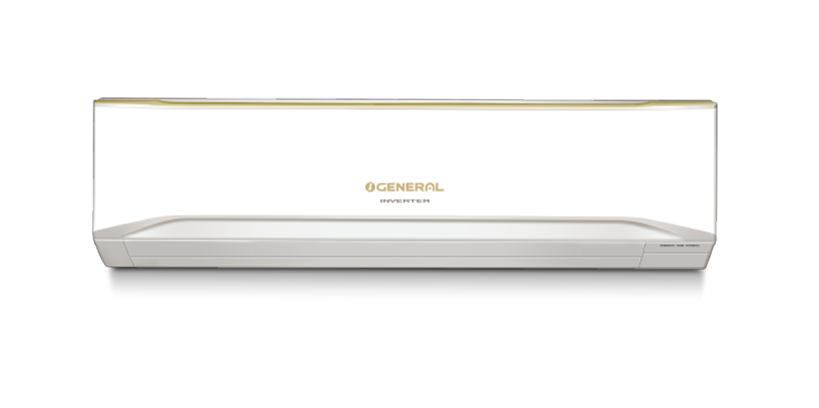

GENERAL Wall Mounted Split Air Conditioners by Fujitsu General are engineered for exceptional cooling performance, reliability and long-lasting durability. Designed to perform efficiently even in extreme Indian summer conditions, GENERAL ACs combine advanced inverter technology, powerful airflow, copper heat exchangers and intelligent comfort features. The product range includes Fixed Speed, Inverter and Tropical Inverter models in multiple capacities for residential and light commercial applications.
GENERAL Split Air Conditioners deliver high-performance cooling with Japanese engineering, energy-efficient inverter technology, durable copper heat exchangers and reliable operation under harsh climatic conditions. Selected models include Hyper Tropical Compressor Technology, Long Reach Airflow, Human Sensor, Automatic Airflow Control, Self Diagnosis, Auto Restart, Powerful Mode and R32 Eco-Friendly Refrigerant.
Enquire Now| Parameter | Specification |
|---|---|
| Available Capacities | 1 Ton | 1.5 Ton | 2 Ton |
| Model Series | CGAA Series |
| Energy Rating | 5 Star (All Models) |
| Cooling Capacity (TR) | 1 Ton: 1.0 TR | 1.5 Ton: 1.5 TR | 2 Ton: 2.0 TR |
| Cooling Capacity (W) |
1 Ton: 3520 (880–3870 W) 1.5 Ton: 5280 (1320–5810 W) 2 Ton: 7040 (1760–7740 W) |
| Cooling Capacity @ 50°C |
1 Ton: 1760 W 1.5 Ton: 2640 W 2 Ton: 3520 W |
| Power Consumption (100%) |
1 Ton: 970 (140–1090 W) 1.5 Ton: 1440 (150–1700 W) 2 Ton: 1936 (340–2350 W) |
| Power Consumption @ 50% |
1 Ton: 300 W 1.5 Ton: 440 W 2 Ton: 610 W |
| EER @100% |
1 Ton: 3.63 W/W 1.5 Ton: 3.67 W/W 2 Ton: 3.64 W/W |
| EER @50% |
1 Ton: 5.87 W/W 1.5 Ton: 6.00 W/W 2 Ton: 5.77 W/W |
| ISEER |
1 Ton: 5.04 1.5 Ton: 5.12 2 Ton: 5.00 |
| Annual Electricity Consumption |
1 Ton: 541 kWh 1.5 Ton: 798 kWh 2 Ton: 1090 kWh |
| Moisture Removal |
1 Ton: 1.3 L/h 1.5 Ton: 1.6 L/h 2 Ton: 2.7 L/h |
| Indoor Fan Speed Levels | 5 Speed Settings |
| Indoor Airflow Volume |
1 Ton: 700 m³/h 1.5 Ton: 1010 m³/h 2 Ton: 1160 m³/h |
| Indoor Air Throw |
1 Ton: 10 m 1.5 Ton: 15 m 2 Ton: 15 m |
| Indoor Unit Dimensions (WxHxD) |
1 Ton: 834 × 270 × 218 mm 1.5 Ton: 840 × 280 × 980 mm 2 Ton: 840 × 280 × 980 mm |
| Indoor Unit Weight |
1 Ton: 10 kg 1.5 Ton: 12.5 kg 2 Ton: 12.5 kg |
| Outdoor Unit Dimensions (WxHxD) |
1 Ton: 663 × 542 × 290 mm 1.5 Ton: 920 × 632 × 290 mm 2 Ton: 1030 × 716 × 315 mm |
| Outdoor Unit Weight |
1 Ton: 23 kg 1.5 Ton: 31 kg 2 Ton: 39 kg |
| Indoor Noise Level |
1 Ton: 22 dB(A) 1.5 Ton: 31 dB(A) 2 Ton: 31 dB(A) |
| Connection Pipe Size |
1 Ton: 9.52 / 6.35 mm 1.5 Ton: 12.70 / 6.35 mm 2 Ton: 12.70 / 6.35 mm |
| Pipe Length |
1 Ton: 3–20 m 1.5 Ton: 3–20 m 2 Ton: 3–30 m |
| Maximum Height Difference |
1 Ton: 15 m 1.5 Ton: 15 m 2 Ton: 25 m |
| Operating Temperature | 18°C to 55°C |
| Operating Voltage | 155V – 280V |
| High Voltage Protection | Up to 700V |
| Refrigerant | R32 Eco-Friendly Refrigerant |
| Compressor |
1 Ton: Advanced Hyper Tropical Rotary 1.5 Ton: Advanced Hyper Tropical Rotary 2 Ton: Advanced Hyper Tropical Twin Rotary |
| Evaporator & Condenser Coil | 100% Copper |

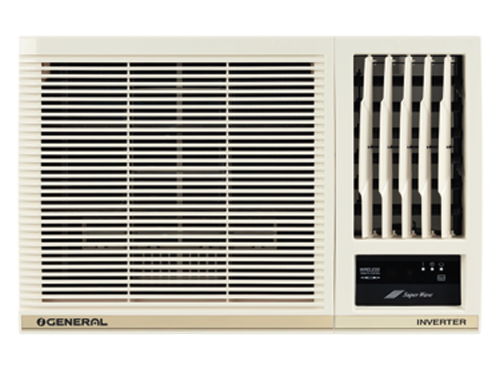

GENERAL Window Air Conditioners are designed for powerful cooling, energy efficiency and reliable performance even in harsh climatic conditions. Featuring Hyper Tropical Rotary Compressors, 100% Copper Condenser Coils, R32 Eco-Friendly Refrigerant and durable construction, GENERAL Window ACs deliver superior cooling for residential and commercial spaces with minimal maintenance.
GENERAL Window Air Conditioners combine Japanese engineering with efficient cooling performance, high ambient operation and durable copper heat exchangers. Built for long-lasting reliability, these ACs feature Hyper Tropical Rotary Compressors, multi-speed fan control, R32 refrigerant and efficient cooling performance suitable for homes, offices, shops and commercial applications.
Enquire Now| Parameter | Specification |
|---|---|
| Available Capacities | 1.17 Ton | 1.5 Ton | 1.79 Ton |
| Energy Rating | 5 Star (All Models) |
| Cooling Capacity (TR) |
1.17 Ton: 1.17 (0.58–1.25 TR) 1.5 Ton: 1.50 (0.55–1.76 TR) 1.79 Ton: 1.79 (0.57–2.02 TR) |
| Cooling Capacity (W) |
1.17 Ton: 4110 (2055–4400 W) 1.5 Ton: 5300 (1950–6200 W) 1.79 Ton: 6300 (2000–7100 W) |
| Cooling Capacity @ 50% |
1.17 Ton: 2055 W 1.5 Ton: 2650 W 1.79 Ton: 3150 W |
| Power Consumption (100%) |
1.17 Ton: 1270 (595–1405 W) 1.5 Ton: 1650 (550–2130 W) 1.79 Ton: 2030 (570–2300 W) |
| Power Consumption @ 50% |
1.17 Ton: 595 W 1.5 Ton: 760 W 1.79 Ton: 920 W |
| EER @100% |
1.17 Ton: 3.23 W/W 1.5 Ton: 3.21 W/W 1.79 Ton: 3.10 W/W |
| EER @50% |
1.17 Ton: 3.45 W/W 1.5 Ton: 3.49 W/W 1.79 Ton: 3.42 W/W |
| Rated ISEER |
1.17 Ton: 3.58 1.5 Ton: 3.59 1.79 Ton: 3.50 |
| Annual Electricity Consumption |
1.17 Ton: 888 kWh 1.5 Ton: 1143 kWh 1.79 Ton: 1394 kWh |
| Moisture Removal |
1.17 Ton: 1.5 L/h 1.5 Ton: 2.2 L/h 1.79 Ton: 3.1 L/h |
| Indoor Fan Speed Levels | 3 Speed Fan Control |
| Indoor Airflow Volume |
1.17 Ton: 710 m³/h 1.5 Ton: 780 m³/h 1.79 Ton: 780 m³/h |
| Unit Dimensions (W × H × D) |
1.17 Ton: 661 × 429 × 706 mm 1.5 Ton: 661 × 429 × 778 mm 1.79 Ton: 661 × 429 × 778 mm |
| Net Weight |
1.17 Ton: 46.1 kg 1.5 Ton: 52.5 kg 1.79 Ton: 56 kg |
| Indoor Noise Level |
1.17 Ton: 48 dB(A) 1.5 Ton: 55 dB(A) 1.79 Ton: 56 dB(A) |
| Operating Temperature | 18°C – 52°C |
| Operating Voltage | 195V – 265V |
| Power Supply | Single Phase, 230V, 50Hz |
| Refrigerant | R32 Eco-Friendly Refrigerant |
| Compressor Type | Hyper Tropical Rotary Compressor |
| Condenser Coil Material | 100% Copper |
| Applications | Homes, Apartments, Offices, Shops, Restaurants, Clinics, Schools and Commercial Spaces. |
| Key Benefits | High Ambient Cooling, Low Power Consumption, Durable Copper Condenser, Energy Efficient, Quiet Operation, R32 Refrigerant and Long Service Life. |
