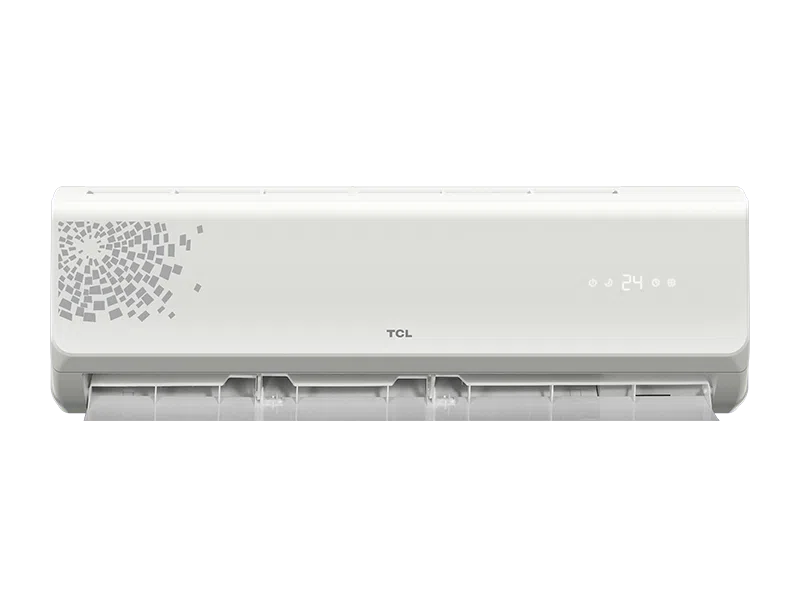

TCL Split Air Conditioners are available in 1 Ton, 1.5 Ton and 2 Ton capacities with both 3 Star and 5 Star energy ratings. Equipped with AI Inverter Technology, Turbo Cooling, 7-in-1 Convertible Cooling, 4D Air Supply and Copper Condenser, TCL ACs provide faster cooling, superior comfort and energy-efficient performance.
TCL Inverter Split Air Conditioners are designed for residential and commercial applications. Featuring AI Inverter Compressor, Turbo Cooling, 4D Air Flow, Long Air Throw, Self Clean Technology and Smart Wi-Fi Connectivity (selected models), TCL ACs deliver reliable cooling with lower power consumption.
Enquire Now| Category | Specification |
|---|---|
| Available Capacities | 1 Ton, 1.5 Ton, 2 Ton |
| Energy Rating | 3 Star, 5 Star |
| Product Type | Wall Mounted Inverter Split Air Conditioner |
| Compressor | AI Inverter Rotary Compressor |
| Cooling Capacity | 3.5 kW (1 Ton), 5.0 kW (1.5 Ton), 6.2–6.5 kW (2 Ton) |
| Cooling Capacity (BTU) | ≈12,000 BTU, ≈18,000 BTU, ≈24,000 BTU |
| Energy Efficiency | High Efficiency AI Inverter Technology |
| ISEER Rating | Approx. 4.1–4.5 (3 Star), 5.0–5.3 (5 Star) |
| Power Consumption | 900–1100 W (1 Ton), 1350–1550 W (1.5 Ton), 1750–2100 W (2 Ton) |
| Power Supply | 1 Phase / 230V / 50Hz |
| Operating Current | 4.5–5.5 A, 6–7 A, 8–10 A (Depending on Capacity) |
| Indoor Noise Level | 24–45 dBA |
| Outdoor Noise Level | 50–56 dBA |
| Air Flow | 4D Air Supply with Long Air Throw |
| Turbo Cooling | Yes (Fast Cooling to 18°C) |
| Convertible Cooling | 7-in-1 Convertible Cooling |
| Sleep Mode | Yes |
| Eco Mode | Yes |
| Silent Operation | Yes |
| Auto Restart | Yes |
| Self Clean | 4-Step Self Clean Technology |
| Air Filter | High Density Dust Filter |
| Condenser Coil | 100% Copper Condenser |
| Anti-Corrosion Protection | Blue Fin Coating |
| Refrigerant | R32 Eco-Friendly Refrigerant |
| Operating Temperature | Approx. 15°C – 52°C |
| Indoor Unit Dimensions | Approx. 80–90 × 28–31 × 20–24 cm |
| Outdoor Unit Dimensions (W × H × D) | 72.8–81.7 × 55.3–60.3 × 25.6–32.8 cm (1 Ton & 1.5 Ton), up to approximately 90 × 67 × 38 cm (2 Ton, model dependent) |
| Indoor Unit Dimensions (W × H × D) | 77–91 × 25–30 × 20.5–23 cm (1 Ton & 1.5 Ton), up to approximately 100 × 33 × 24 cm (2 Ton) |
| Indoor Unit Weight | 9–12 kg (1 Ton & 1.5 Ton), 12–15 kg (2 Ton) |
| Outdoor Unit Weight | 21.5–32 kg (1 Ton & 1.5 Ton), 32–42 kg (2 Ton) |
| Maximum Piping Length | Up to 25–30 m |
| Maximum Height Difference | Up to 10–15 m |
| Liquid Pipe Size | 6.35 mm |
| Gas Pipe Size | 9.52 mm (1 Ton), 12.7 mm (1.5 & 2 Ton) |
| Wi-Fi Connectivity | Available (Selected Models) |
| Smart Control | TCL Home App (Selected Models) |
| Suitable Room Size | Up to 120 sq.ft (1 Ton), 120–180 sq.ft (1.5 Ton), 180–260 sq.ft (2 Ton) |
| Warranty | 1 Year Comprehensive Warranty, 10 Years Compressor Warranty* |
